SX3K系列晶振,FCD-Tech32.768K有源晶振,SX3K-18F50E-32.768KHz,3225mm,CMOS,荷蘭進口晶振,FCD-Tech時鐘振蕩器,四腳有源晶振,OSC晶振,3225mm小體積晶振,32.768K時鐘晶振,CMOS輸出晶振,尺寸3.2x2.5mm,頻率32.768KHZ,電壓1.8V,支持輸出CMOS,低損耗晶振,藍牙晶振,移動通信晶振,無線局域網晶振,便攜式設備晶振.
SX3K系列晶振,FCD-Tech32.768K有源晶振,SX3K-18F50E-32.768KHz,3225mm,CMOS特點:
微型封裝有源晶振
低電流消耗
擴展可用的溫度范圍
應用：無線局域網、藍牙和移動通信.
SX3K系列晶振,FCD-Tech32.768K有源晶振,SX3K-18F50E-32.768KHz,3225mm,CMOS 參數表
| Item | Speci?cation | ||||||||||||||
| Frequency Range | 32.768 kHz | ||||||||||||||
| Output Logic | CMOS | ||||||||||||||
| Overall Frequency Stability * | ± 20 ppm ~ ± 100 ppm(see options) | ||||||||||||||
| Operating Temperature Range | 0 ~ +70°C commercial application (see options) | ||||||||||||||
| -40 ~ +85°C industrial application (see options) | |||||||||||||||
| Supply Voltage Vdd | +1.8V ±5% | +2.5V ±5%+3.3V ±5% |
|
||||||||||||
| Supply CurrentIdd | 1.0 mA max | 1.0 mA max | |||||||||||||
  VOL ≤ 0.1 Vdd
|
|||||||||||||||
| Output Load | 15 pF | ||||||||||||||
| Symmetry | 45 / 55 % | ||||||||||||||
|
Rise Time / Fall TimeFr/Ff |
 6 ns max
|
||||||||||||||
|
Tri-state functionpin #1 = high or openpin #3 ==> oscillation pin #1 = low pin #3 ==> high impedance |
|||||||||||||||
| Start-up Time | 10 ms max. | ||||||||||||||
| Packing Unit | 3000pcs / reel | ||||||||||||||
| Soldering Condition | 260°C, 10 sec x2 max | ||||||||||||||

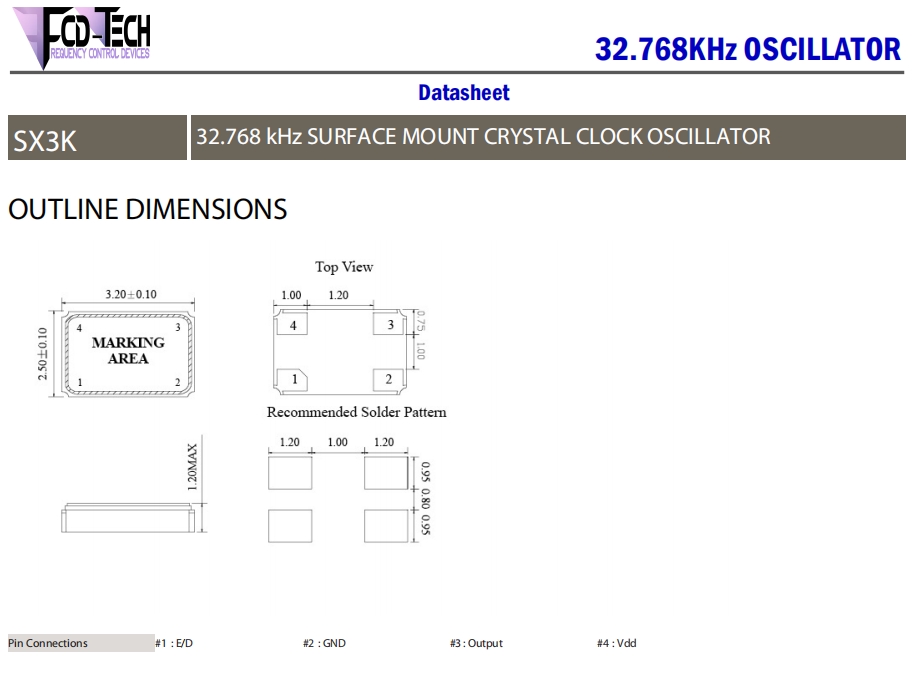

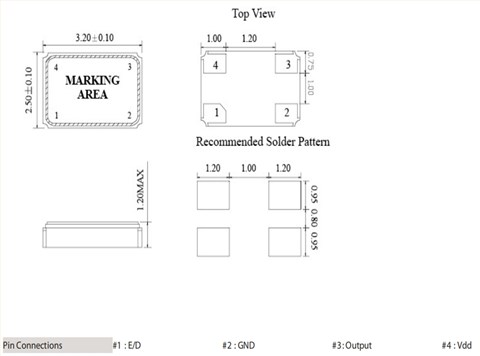

SX3K系列晶振,FCD-Tech32.768K有源晶振,SX3K-18F50E-32.768KHz,3225mm,CMOS尺寸圖
