當前位置：首頁 » 歐美晶振 » Skyworks晶振 » Skyworks倒車雷達晶振,590BC150M000DGR,Si590時鐘XO振蕩器

prevnext

Skyworks倒車雷達晶振,590BC150M000DGR,Si590時鐘XO振蕩器

頻率：150MHZ

尺寸：7.0×5.0mm

Skyworks倒車雷達晶振,590BC150M000DGR,Si590時鐘XO振蕩器，尺寸7.0x5.0mm，頻率150MHZ，輸出邏輯LVDS，電壓3.3V，頻率穩定性20ppm，Skyworks有源晶振，思佳訊差分晶振，SMD差分晶振，六腳差分晶振，7050貼片差分晶振，LVDS輸出晶振，差分晶體振蕩器，石英差分振蕩器，貼片差分晶振，差分有源晶振，高質量差分晶振，高頻差分振蕩器，150MHZ差分晶振，低電壓差分振蕩器，低抖動差分晶振，低損耗差分晶振，低耗能差分晶振，低功耗差分晶振，低損耗差分晶振，低相位差分晶振，低相噪差分晶振，倒車雷達差分晶振，網絡設備差分晶振，儀器儀表差分晶振，無線模塊專用差分晶振，航空電子差分晶振，自動駕駛差分晶振，物聯網差分晶振，具有低抖動低功耗的特點。

差分晶振產品超級適合用于倒車雷達，網絡設備，儀器儀表，無線模塊，航空電子，自動駕駛，物聯網等領域。Skyworks倒車雷達晶振,590BC150M000DGR,Si590時鐘XO振蕩器.

訂購熱線：86-0755-27838351

Skyworks倒車雷達晶振,590BC150M000DGR,Si590時鐘XO振蕩器 參數表

Parameter	Symbol	Test Condition	Min	Typ	Max	Units
Supply Voltage1	V DD	3.3 V option	2.97	3.3	3.63	V
		2.5 V option	2.25	2.5	2.75
		1.8 V option	1.71	1.8	1.89
Supply Current	IDD	Output enabled LVPECL CML LVDS CMOS	— — — —	110 100 90 80	125 110 100 90	mA
		Tristate mode	—	60	75
Output Enable (OE)2		VIH	0.75 x V DD	—	—	V
		VIL	—	—	0.5
Operating Temperature Range	TA		–40	—	85	ºC

Parameter

Symbol

Test Condition

Min

Typ

Max

Units

Nominal Frequency1,2

LVPECL/LVDS/CML

—

810

MHz

CMOS

—

160

Initial Accuracy

Measured at +25 °C at time of
shipping

—

±1.5

—

ppm

Total Stability

Note 3, second option code “D”

±20

ppm

Note 3, second option code “C”

±30

ppm

Note 4, second option code “B”

—

±50

ppm

Note 4, second option code “A”

—

±100

ppm

Temperature Stability

second option code “D”

—

±7

ppm

second option code “C”

±20

ppm

second option code “B”

±25

ppm

second option code “A”

—

±50

ppm

Powerup Time5

tOSC

—

Parameter

Symbol

Test Condition

Min

Typ

Max

Units

LVPECL Output Option1

mid-level

V DD – 1.42

V DD – 1.25

VOD

swing (diff)

1.1

1.9

VPP

VSE

swing (single-ended)

0.55

0.95

VPP

LVDS Output Option2

mid-level

1.125

1.20

1.275

VOD

swing (diff)

0.5

0.7

0.9

VPP

CML Output Option2

2.5/3.3 V option mid-level

—

V DD – 1.30

—

1.8 V option mid-level

—

V DD – 0.36

—

VOD

2.5/3.3 V option swing (diff)

1.10

1.50

1.90

VPP

1.8 V option swing (diff)

0.35

0.425

0.50

CMOS Output Option3

V OH

0.8 x V DD

—

V DD

VOL

—

0.4

Rise/Fall time (20/80%)

tR,t F

LVPECL/LVDS/CML

—

350

CMOS with CL= 15 pF

—

Symmetry (duty cycle)

SYM

LVPECL:   V DD – 1.3 V (diff)
LVDS:        1.25 V (diff)
CMOS:      V DD/2

—

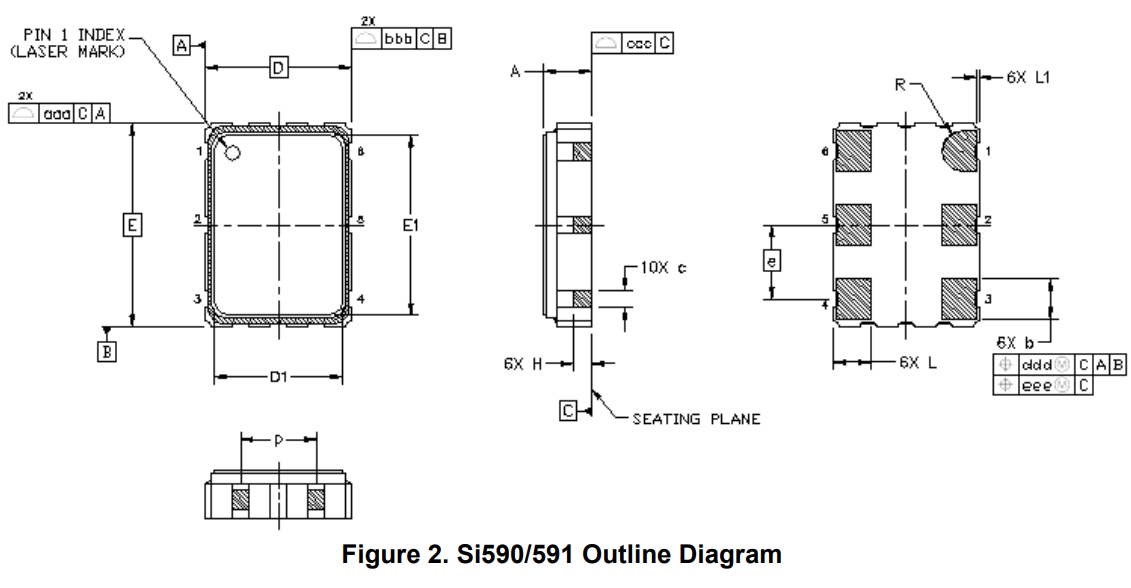

Skyworks倒車雷達晶振,590BC150M000DGR,Si590時鐘XO振蕩器 尺寸圖

Skyworks倒車雷達晶振,590BC150M000DGR,Si590時鐘XO振蕩器

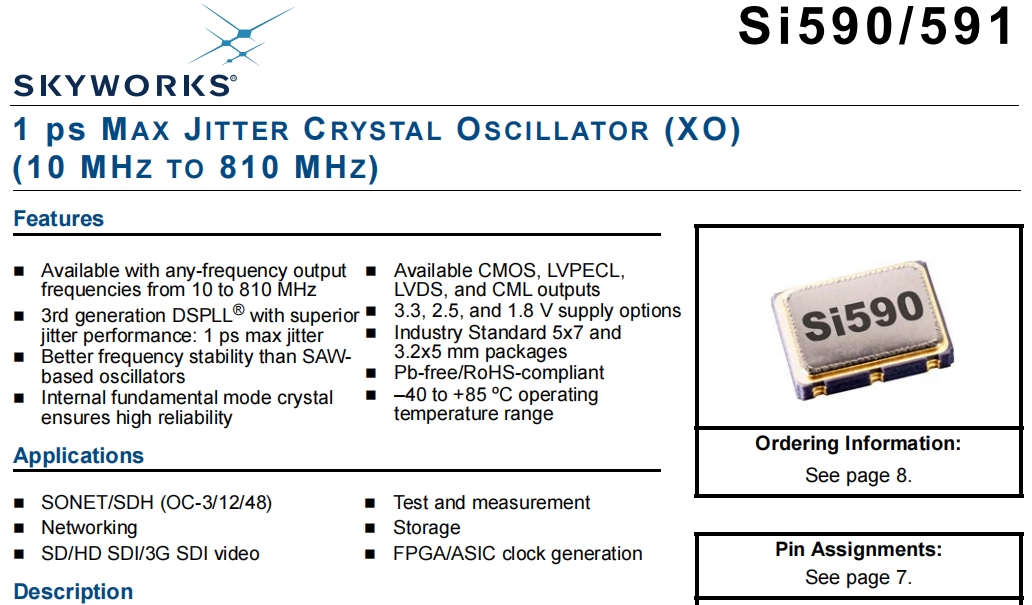

OscillatorCrystal產品特點：

可用于任何頻率輸出頻率從10到810兆赫

具有卓越性能的第三代DSPLL®抖動性能：最大抖動1 ps

比基于SAW的振蕩器具有更好的頻率穩定性

內部基模晶體確保高可靠性

可用的CMOS、LVPECL、LVDS和CML輸出

3.3、2.5和1.8 V電源選項

行業標準5x7和3.2x5 mm包裝

無鉛/符合RoHS

–40至+85ºC運行溫度范圍

Mfr Part #	晶振廠家	Description	Series	Frequency	Output
590BA10M0000DG	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ LVDS SMD	Si590	10 MHz	LVDS
590BA125M000DG	Skyworks有源晶振	XTAL OSC XO 125.0000MHZ LVDS SMD	Si590	125 MHz	LVDS
590BA32M0000DG	Skyworks有源晶振	XTAL OSC XO 32.0000MHZ LVDS SMD	Si590	32 MHz	LVDS
590BA50M0000DG	Skyworks有源晶振	XTAL OSC XO 50.0000MHZ LVDS SMD	Si590	50 MHz	LVDS
590BA52M0000DG	Skyworks有源晶振	XTAL OSC XO 52.0000MHZ LVDS SMD	Si590	52 MHz	LVDS
590EA125M000DG	Skyworks有源晶振	XTAL OSC XO 125.0000MHZ LVPECL	Si590	125 MHz	LVPECL
590FA100M000DG	Skyworks有源晶振	XTAL OSC XO 100.0000MHZ LVDS SMD	Si590	100 MHz	LVDS
590FA25M0000DG	Skyworks有源晶振	XTAL OSC XO 25.0000MHZ LVDS SMD	Si590	25 MHz	LVDS
590BA100M000DGR	Skyworks有源晶振	XTAL OSC XO 100.0000MHZ LVDS SMD	Si590	100 MHz	LVDS
590BA10M0000DGR	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ LVDS SMD	Si590	10 MHz	LVDS
590BA125M000DGR	Skyworks有源晶振	XTAL OSC XO 125.0000MHZ LVDS SMD	Si590	125 MHz	LVDS
590BA32M0000DGR	Skyworks有源晶振	XTAL OSC XO 32.0000MHZ LVDS SMD	Si590	32 MHz	LVDS
590BA50M0000DGR	Skyworks有源晶振	XTAL OSC XO 50.0000MHZ LVDS SMD	Si590	50 MHz	LVDS
590BA52M0000DGR	Skyworks有源晶振	XTAL OSC XO 52.0000MHZ LVDS SMD	Si590	52 MHz	LVDS
590EA125M000DGR	Skyworks有源晶振	XTAL OSC XO 125.0000MHZ LVPECL	Si590	125 MHz	LVPECL
590FA100M000DGR	Skyworks有源晶振	XTAL OSC XO 100.0000MHZ LVDS SMD	Si590	100 MHz	LVDS
590FA25M0000DGR	Skyworks有源晶振	XTAL OSC XO 25.0000MHZ LVDS SMD	Si590	25 MHz	LVDS
590BA25M0000DGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si590	25 MHz	LVDS
590NE10M0000DGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si590	10 MHz	LVDS
590AA100M000DGR	Skyworks有源晶振	XTAL OSC XO 100.0000MHZ LVPECL	Si590	100 MHz	LVPECL
590AA10M0000DGR	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ LVPECL	Si590	10 MHz	LVPECL
590AA125M000DGR	Skyworks有源晶振	XTAL OSC XO 125.0000MHZ LVPECL	Si590	125 MHz	LVPECL
590AG156M250DGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si590	156.25 MHz	LVPECL
590BG150M000DGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si590	150 MHz	LVDS
590AB156M250DGR	Skyworks有源晶振	XTAL OSC XO 156.2500MHZ LVPECL	Si590	156.25 MHz	LVPECL
590AC135M000DGR	Skyworks有源晶振	XTAL OSC XO 135.0000MHZ LVPECL	Si590	135 MHz	LVPECL
590AC155M025DGR	Skyworks有源晶振	XTAL OSC XO 155.0250MHZ LVPECL	Si590	155.025 MHz	LVPECL
590AC156M250DGR	Skyworks有源晶振	XTAL OSC XO 156.2500MHZ LVPECL	Si590	156.25 MHz	LVPECL
590AD10M0000DGR	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ LVPECL	Si590	10 MHz	LVPECL
590AD20M0000DGR	Skyworks有源晶振	XTAL OSC XO 20.0000MHZ LVPECL	Si590	20 MHz	LVPECL
590BC000118DGR	Skyworks有源晶振	XTAL OSC XO 118.0000KHZ LVDS SMD	Si590	118 kHz	LVDS
590BC148M350DGR	Skyworks有源晶振	XTAL OSC XO 148.3500MHZ LVDS SMD	Si590	148.35 MHz	LVDS
590BC148M500DGR	Skyworks有源晶振	XTAL OSC XO 148.5000MHZ LVDS SMD	Si590	148.5 MHz	LVDS
590BC150M000DGR	Skyworks有源晶振	XTAL OSC XO 150.0000MHZ LVDS SMD	Si590	150 MHz	LVDS
590BC156M250DGR	Skyworks有源晶振	XTAL OSC XO 156.2500MHZ LVDS SMD	Si590	156.25 MHz	LVDS
590BD10M0000DGR	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ LVDS SMD	Si590	10 MHz	LVDS
590BD125M000DGR	Skyworks有源晶振	XTAL OSC XO 125.0000MHZ LVDS SMD	Si590	125 MHz	LVDS
590BD20M0000DGR	Skyworks有源晶振	XTAL OSC XO 20.0000MHZ LVDS SMD	Si590	20 MHz	LVDS
590BD24M5760DGR	Skyworks有源晶振	XTAL OSC XO 24.5760MHZ LVDS SMD	Si590	24.576 MHz	LVDS
590FC156M250DGR	Skyworks有源晶振	XTAL OSC XO 156.2500MHZ LVDS SMD	Si590	156.25 MHz	LVDS
590FD125M000DGR	Skyworks有源晶振	XTAL OSC XO 125.0000MHZ LVDS SMD	Si590	125 MHz	LVDS
590FD50M0000DGR	Skyworks有源晶振	XTAL OSC XO 50.0000MHZ LVDS SMD	Si590	50 MHz	LVDS
590FD74M2500DGR	Skyworks有源晶振	XTAL OSC XO 74.2500MHZ LVDS SMD	Si590	74.25 MHz	LVDS
590AC144M300DGR	Skyworks有源晶振	XTAL OSCILLATOR	Si590	144.3 MHz	LVPECL
590FD32M0000DGR	Skyworks有源晶振	XTAL OSCILLATOR	Si590	32 MHz	LVDS
590FD32M2400DGR	Skyworks有源晶振	XTAL OSCILLATOR	Si590	32.24 MHz	LVDS
590FD36M0000DGR	Skyworks有源晶振	XTAL OSCILLATOR	Si590	36 MHz	LVDS
590FC200M000DGR	Skyworks有源晶振	XO DIFF OE PIN 2 10-810MHZ	Si590	200 MHz	LVDS
590BC000185DGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si590	161.132812 MHz	LVDS
590FD100M000DGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si590	100 MHz	LVDS
590FD40M0000DGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si590	40 MHz	LVDS
590BD74M2500DGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si590	74.25 MHz	LVDS
590BD80M0000DGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si590	80 MHz	LVDS
590BC200M000DGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si590	200 MHz	LVDS
590BC000351DGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si590	195.3125 MHz	LVDS
590FD61M3800DGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si590	61.38 MHz	LVDS
590BD122M880DGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si590	122.88 MHz	LVDS
590EC148M500DGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si590	148.5 MHz	LVPECL
590AC125M000DG	Skyworks有源晶振	XTAL OSCILLATOR	Si590	125 MHz	LVPECL
590AC16M0000DG	Skyworks有源晶振	XTAL OSCILLATOR	Si590	16 MHz	LVPECL
590BC20M0000DG	Skyworks有源晶振	XTAL OSCILLATOR	Si590	20 MHz	LVDS
590BC27M0000DG	Skyworks有源晶振	XTAL OSCILLATOR	Si590	27 MHz	LVDS
590BC40M0000DG	Skyworks有源晶振	XTAL OSCILLATOR	Si590	40 MHz	LVDS
590BC117M675DG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si590	117.675 MHz	LVDS
590BC117M765DG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si590	117.765 MHz	LVDS
590BC125M000DG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si590	125 MHz	LVDS
590AC50M0700DG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si590	50.07 MHz	LVPECL
590AC117M765DG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si590	117.765 MHz	LVPECL
590AC117M675DG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si590	117.675 MHz	LVPECL
590BG70M6560DG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si590	70.656 MHz	LVDS

Skyworks倒車雷達晶振 590BC150M000DGR Si590時鐘XO振蕩器
