康華爾電子成立至今已有20多年,是國內數一數二的晶振廠家0755-27838351,專業研發生產銷售石英晶振,32.768K晶振,石英晶體諧振器,貼片晶振,SAW濾波器等.采用無鉛環保材料生產,具有精度穩定,小體積,重量輕等特點.國產晶振就選康華爾電子,質量好,精度高,價格優勢.
康華爾電子多年來在競爭激烈的市場中,以技術占領市場,以質量贏得客戶,是國內口碑極高的晶振供應商.并且憑借自身的努力代理臺灣進口晶振多個品牌,TXC晶振,鴻星晶振,加高晶振,亞陶晶振等.康華爾電子所提供的臺產晶振,均符合德國ROHS環保指令,具有高質量,高可靠使用特性,咨詢選購熱線0755-27838351.
日本進口晶振在國內口碑一流,高端智能產品使用晶振大都會選擇日產晶振作為首選.康華爾電子憑借自身的努力同時代理KDS晶振,愛普生晶振,精工晶體,京瓷晶振等品牌.所代理石英晶振,石英晶體振蕩器,貼片晶體均符合歐盟ROHS環保要求,具有高精度,高品質,低插損,耐高溫等特點.
康華爾電子是國內優秀的歐美進口晶振供貨商0755-27838351,多年來憑借自身的努力,獲得CTS晶振,FOX晶振,Sitime晶振,瑞康晶振等代理權限.所代理進口晶振,歐美晶振均符合歐盟ROHS環保指令,并且獲得ISO國際質量管理體系認證.市場常用進口晶振封裝型號康華爾電子均有備貨,可免費提供現貨樣品以及晶振技術解決方案.
32.768K是晶振頻率中最容易讓人記住的數字,32.768K晶振素來有時鐘晶振的稱謂,只要跟數字顯示以及時間相關的產品都少不了一款32.768K晶振.根據不同的產品需求主要分為圓柱晶振和32.768K貼片晶振.常見封裝有2x6,3x8,7.0x1.5,3.2x1.5,2.0x1.2等體積.康華爾電子提供各種32.768K晶振,音叉表晶,價格優質,咨詢熱線0755-27838351.
有源晶振是一款自身帶有電源電壓功能的石英晶體振蕩器,并且有多種電壓供選擇,比如有1.8V,2.5V,3.3V,3.8V,5V等高速自動安裝和高溫回流焊設計,Optionable待機輸出三態輸出功能,電源電壓范圍：1.8V~5 V,高穩定性,低抖動,低功耗,主要應用領域:無線通訊,高端智能手機,平板筆記本WLAN,藍牙,數碼相機,DSL和其他IT產品的晶振應用,三態功能,PC和LCDM等高端數碼領域,符合RoHS/無鉛.

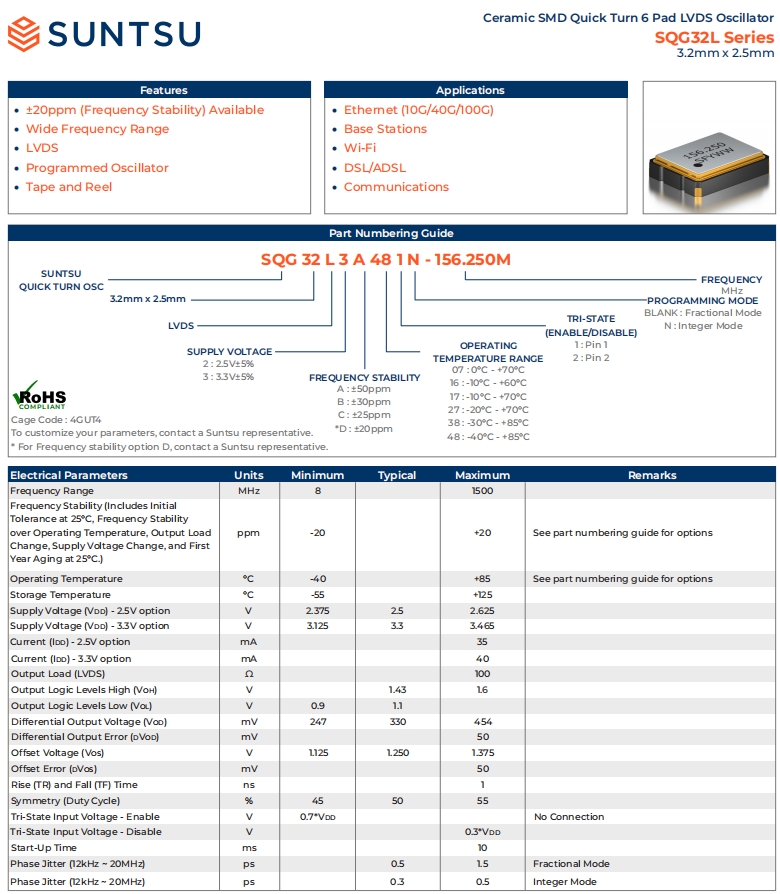

支持輸出LVDS的OSC晶振SQG32L3D481N-212.500M非常適合基站應用，Suntsu是一家有著非凡影響力的知名晶振品牌供應商，致力于為用戶提供具有選擇空間的優良產品，并且用心打磨的每一款有源貼片晶振產品，具備非常凸出的可靠性能，使得松圖公司贏得無數的好評聲，不驕傲的松圖晶振更是想法設法為行業開創創意性十足的振蕩器，產品深受導航定位系統，無線模塊等領域的歡迎。
支持輸出LVDS的OSC晶振SQG32L3D481N-212.500M非常適合基站應用，Suntsu晶體振蕩器提供通孔或表面貼裝封裝，SPXO晶體振蕩器是一種電子電路，它利用壓電材料振動晶體的機械共振來產生頻率非常精確的電信號。該頻率通常用于記錄時間，為數字集成電路提供穩定的時鐘信號，以及穩定無線電發射機和接收機的頻率。
| 歐美晶振編碼 | Manufacturer | Package | Logic | Jitter | Voltage | Stability | Operating Temp. |
| SQG32C3A071-8.000M-250.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | CMOS | 1.5ps | 3.3V±5% | ±50ppm | 0°C - +70°C |
| SQG32C3A16-8.000M-250.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | CMOS | 1.5ps | 3.3V±5% | ±50ppm | -10°C - +60°C |
| SQG32C3A161-8.000M-250.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | CMOS | 1.5ps | 3.3V±5% | ±50ppm | -10°C - +60°C |
| SQG32C3A17-8.000M-250.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | CMOS | 1.5ps | 3.3V±5% | ±50ppm | -10°C - +70°C |
| SQG32C3A171-8.000M-250.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | CMOS | 1.5ps | 3.3V±5% | ±50ppm | -10°C - +70°C |
| SQG32C3A27-8.000M-250.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | CMOS | 1.5ps | 3.3V±5% | ±50ppm | -20°C - +70°C |
| SQG32C3A271-8.000M-250.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | CMOS | 1.5ps | 3.3V±5% | ±50ppm | -20°C - +70°C |
| SQG32C3A38-8.000M-250.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | CMOS | 1.5ps | 3.3V±5% | ±50ppm | -30°C - +85°C |
| SQG32C3A381-8.000M-250.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | CMOS | 1.5ps | 3.3V±5% | ±50ppm | -30°C - +85°C |
| SQG32C3A48-8.000M-250.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | CMOS | 1.5ps | 3.3V±5% | ±50ppm | -40°C - +85°C |
| SQG32C3A481-8.000M-250.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | CMOS | 1.5ps | 3.3V±5% | ±50ppm | -40°C - +85°C |
| SQG32C3B07-8.000M-250.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | CMOS | 1.5ps | 3.3V±5% | ±30ppm | 0°C - +70°C |
| SQG32C3B071-8.000M-250.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | CMOS | 1.5ps | 3.3V±5% | ±30ppm | 0°C - +70°C |
| SQG32C3B16-8.000M-250.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | CMOS | 1.5ps | 3.3V±5% | ±30ppm | -10°C - +60°C |
| SQG32C3B161-8.000M-250.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | CMOS | 1.5ps | 3.3V±5% | ±30ppm | -10°C - +60°C |
| SQG32C3B17-8.000M-250.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | CMOS | 1.5ps | 3.3V±5% | ±30ppm | -10°C - +70°C |
| SQG32C3B171-8.000M-250.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | CMOS | 1.5ps | 3.3V±5% | ±30ppm | -10°C - +70°C |
| SQG32C3B27-8.000M-250.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | CMOS | 1.5ps | 3.3V±5% | ±30ppm | -20°C - +70°C |
| SQG32C3B271-8.000M-250.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | CMOS | 1.5ps | 3.3V±5% | ±30ppm | -20°C - +70°C |
| SQG32C3B38-8.000M-250.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | CMOS | 1.5ps | 3.3V±5% | ±30ppm | -30°C - +85°C |
| SQG32C3B381-8.000M-250.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | CMOS | 1.5ps | 3.3V±5% | ±30ppm | -30°C - +85°C |
| SQG32C3B48-8.000M-250.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | CMOS | 1.5ps | 3.3V±5% | ±30ppm | -40°C - +85°C |
| SQG32C3B481-8.000M-250.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | CMOS | 1.5ps | 3.3V±5% | ±30ppm | -40°C - +85°C |
| SQG32C3C07-8.000M-250.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | CMOS | 1.5ps | 3.3V±5% | ±25ppm | 0°C - +70°C |
| SQG32C3C16-8.000M-250.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | CMOS | 1.5ps | 3.3V±5% | ±25ppm | -10°C - +60°C |
| SQG32C3C17-8.000M-250.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | CMOS | 1.5ps | 3.3V±5% | ±25ppm | -10°C - +70°C |
| SQG32C3C27-8.000M-250.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | CMOS | 1.5ps | 3.3V±5% | ±25ppm | -20°C - +70°C |
| SQG32C3C38-8.000M-250.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | CMOS | 1.5ps | 3.3V±5% | ±25ppm | -30°C - +85°C |
| SQG32C3C48-8.000M-250.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | CMOS | 1.5ps | 3.3V±5% | ±25ppm | -40°C - +85°C |
| SQG32L2A071-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±50ppm | 0°C - +70°C |
| SQG32L2A072-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±50ppm | 0°C - +70°C |
| SQG32L2A161-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±50ppm | -10°C - +60°C |
| SQG32L2A162-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±50ppm | -10°C - +60°C |
| SQG32L2A171-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±50ppm | -10°C - +70°C |
| SQG32L2A172-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±50ppm | -10°C - +70°C |
| SQG32L2A271-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±50ppm | -20°C - +70°C |
| SQG32L2A272-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±50ppm | -20°C - +70°C |
| SQG32L2A381-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±50ppm | -30°C - +85°C |
| SQG32L2A382-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±50ppm | -30°C - +85°C |
| SQG32L2A481-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±50ppm | -40°C - +85°C |
| SQG32L2A482-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±50ppm | -40°C - +85°C |
| SQG32L2B071-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±30ppm | 0°C - +70°C |
| SQG32L2B072-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±30ppm | 0°C - +70°C |
| SQG32L2B161-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±30ppm | -10°C - +60°C |
| SQG32L2B162-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±30ppm | -10°C - +60°C |
| SQG32L2B171-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±30ppm | -10°C - +70°C |
| SQG32L2B172-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±30ppm | -10°C - +70°C |
| SQG32L2B271-8.000M-1500.000M | 美國松圖晶振 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±30ppm | -20°C - +70°C |
| SQG32L2B272-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±30ppm | -20°C - +70°C |
| SQG32L2B381-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±30ppm | -30°C - +85°C |
| SQG32L2B382-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±30ppm | -30°C - +85°C |
| SQG32L2B481-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±30ppm | -40°C - +85°C |
| SQG32L2B482-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±30ppm | -40°C - +85°C |
| SQG32L2C071-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±25ppm | 0°C - +70°C |
| SQG32L2C072-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±25ppm | 0°C - +70°C |
| SQG32L2C161-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±25ppm | -10°C - +60°C |
| SQG32L2C162-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±25ppm | -10°C - +60°C |
| SQG32L2C171-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±25ppm | -10°C - +70°C |
| SQG32L2C172-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±25ppm | -10°C - +70°C |
| SQG32L2C271-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±25ppm | -20°C - +70°C |
| SQG32L2C272-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±25ppm | -20°C - +70°C |
| SQG32L2C381-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±25ppm | -30°C - +85°C |
| SQG32L2C382-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±25ppm | -30°C - +85°C |
| SQG32L2C481-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±25ppm | -40°C - +85°C |
| SQG32L2C482-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±25ppm | -40°C - +85°C |
| SQG32L3A071-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 3.3V±5% | ±50ppm | 0°C - +70°C |
